≥6000 times cycles at 75% DOD. This exceptional durability significantly minimizes long-term replacement costs and secures the end-user's investment.

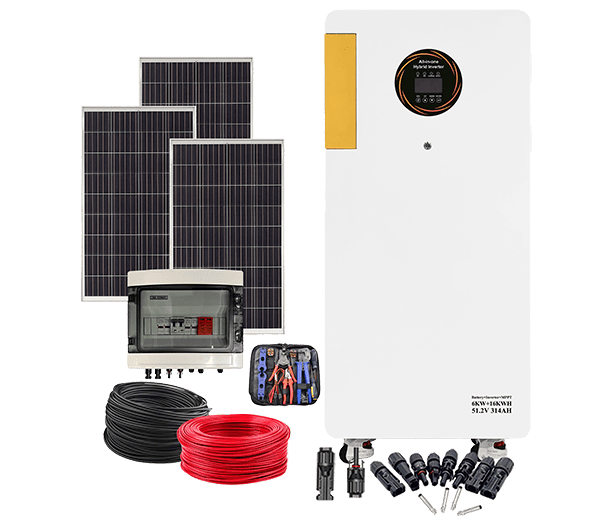

True All-in-One 6KW solution with a near-instant 10ms transfer time. Guaranteed zero disruption for sensitive equipment and critical operations during outages.
Industry-leading 96% PV-to-Inverter efficiency and 9KW PV input capacity. Maximizes solar harvest and accelerates customer ROI.
We are a direct factory. Submit your drawings or spec sheets for tailored product parameters, appearance, and branding. Build market differentiation with zero middleman friction.
SECURE YOUR QUOTE NOW. PARTNER WITH RUICHEN.
CLICK TO INQUIRE| INVERTER & CHARGING PARAMETERS | |
| Max AC Output Power | 6 KVA / 6 KW |
| Maximum PV Input Power | 9000W |
| MPPT Voltage Range | 60 Vdc – 450 Vdc |
| Peak Efficiency (PV to INV) | 96% |
| Switching Time (Computer Mode) | 10ms |
| Max Total Charging Current (PV+AC) | 120A |
| BATTERY SPECIFICATIONS | |
| Battery Energy (Wh) | 16000 Wh (16 kWh) |
| Nominal Capacity / Voltage | 314 AH / 51.2V |
| Max Continuous Discharge Current | 150A |
| Cycle Life | ≥6000 times |
| Communication Interface | RS232/RS485/Dry Contact |
| PHYSICAL & ENVIRONMENTAL | |

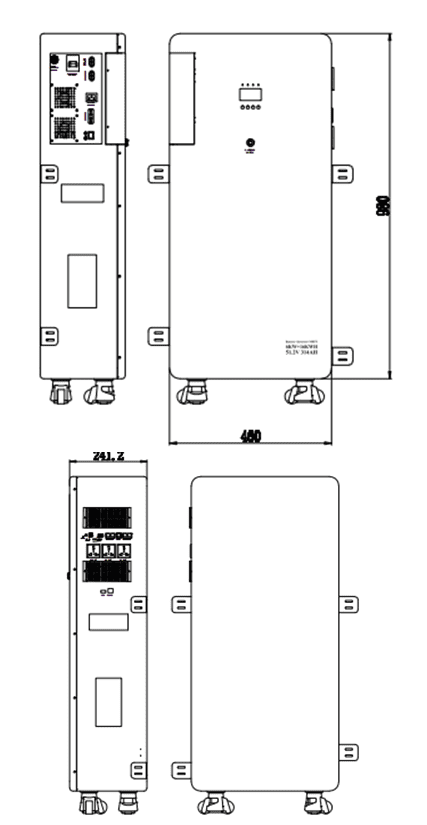

| Product Dimensions (L×W×H) | 1050*460*240 mm |
| Net Weight | 122 Kgs |
| Protection Grade | IP21 |
