10.24kWh Wall Mounted LiFePO4 Battery

Product Size

651.5*445*235mm

Grade A LiFePO4 cells

≥6000 cycles

Storage Capacity

10240Wh

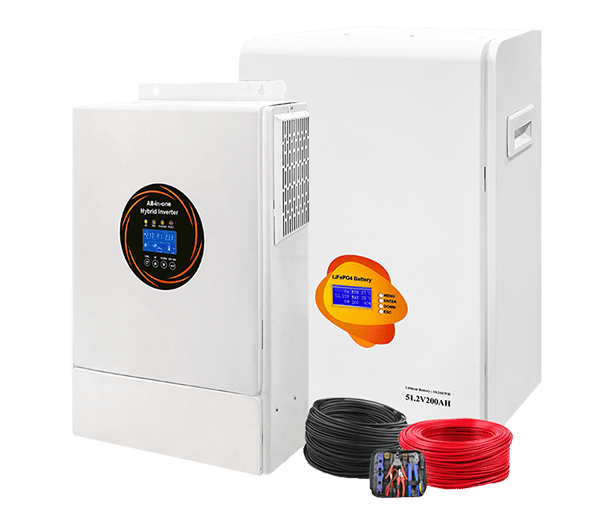

Product Features

1. Unparalleled Asset Longevity: 6000+ Cycle Life Guarantee

≥6000 times cycles at 75% DOD. This exceptional durability significantly minimizes long-term replacement costs and secures the end-user's investment.

2. Seamless Power Assurance: 10ms Instant Switchover Technology

True All-in-One 6KW solution with a near-instant 10ms transfer time. Guaranteed zero disruption for sensitive equipment and critical operations during outages.

3. Maximum Profitability: 96% Peak Energy Conversion

Industry-leading 96% PV-to-Inverter efficiency and 9KW PV input capacity. Maximizes solar harvest and accelerates customer ROI.

4. Direct Factory Advantage: Full OEM/ODM Customization

We are a direct factory. Submit your drawings or spec sheets for tailored product parameters, appearance, and branding. Build market differentiation with zero middleman friction.

SECURE YOUR QUOTE NOW. PARTNER WITH RUICHEN.

CLICK TO INQUIRE

Product Parameters

BATTERY MODULE PARAMETERS
Model	WM 512200
Type of Battery	LFE (LiFePO4)
Nominal Voltage / Capacity	51.2V 200AH [cite: 201, 256]
Storage Capacity	10240Wh (10.24KWH)
Capacity for assembled cell discharging by 0.2C	≥200Ah
Battery Voltage Range	40V - 58.4V
Maximum Charge/Discharge Current	200A
Internal Resistance	≤80mΩ Assemblage Impedance
Cycle Life	≥6000 cycles 25℃，80%EOL
FUNCTIONAL & ENVIRONMENTAL
Installation Type	Wall Mounted
Parallel Capability	Up to 6 units (No series connection)
Communication Interface	RS485, CAN, RS232
Protection Grade	IP21
Product Dimensions (L×W×H)	$651.5\text{445235mm}$
Net Weight	116.1KGS
Warranty	5 Years

Quality and Assurance

From precision manufacturing in our controlled facilities to stringent testing with advanced instruments, we ensure every unit meets the highest global standards for safety, performance, and long-term reliability.

Certifications & Safety Assurance

Verification of quality and compliance with key international safety and performance standards (e.g.,RoHS,UL, CE, TUV, UN38.3, IOS9001).

Global Technical Support

Comprehensive technical assistance, warranty programs, and remote support to ensure long-term product satisfaction.

Precision Quality Control

Utilizing high-accuracy instruments, including life cycle testers and environmental chambers, for stringent product reliability testing.

Advanced Manufacturing Facilities

An overview of our modern, spacious, and well-managed production area designed for quality products assembly and storage.
