≥6000 times cycles at 75% DOD. This exceptional durability significantly minimizes long-term replacement costs and secures the end-user's investment.
True All-in-One 6KW solution with a near-instant 10ms transfer time. Guaranteed zero disruption for sensitive equipment and critical operations during outages.
Industry-leading 96% PV-to-Inverter efficiency and 9KW PV input capacity. Maximizes solar harvest and accelerates customer ROI.
We are a direct factory. Submit your drawings or spec sheets for tailored product parameters, appearance, and branding. Build market differentiation with zero middleman friction.
SECURE YOUR QUOTE NOW. PARTNER WITH RUICHEN.
CLICK TO INQUIRE| BATTERY MODULE PARAMETERS | |
| Type of Battery | LiFePO4 |
| Nominal Voltage / Capacity | 51.2V 300AH |
| Battery Energy (Wh) | 15360Wh (15.36KWH) |
| Capacity for assembled cell discharging by 0.2C | ≥300Ah |
| Battery Voltage Range | 40V - 58.4V |
| Maximum Charge Current | 200A |
| Internal Resistance | ≤80mΩ Assemblage Impedance |
| Cycle Life | ≥6000 cycles |
| FUNCTIONAL CONFIGURATION | |
| Parallel Capability | Up to 6 units |

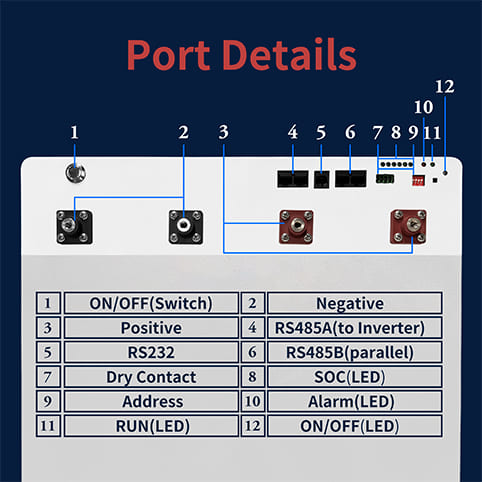

| Communication Interface | RS485, CAN, RS232 |
| LED Panel / Power Display | YES / Traffic Light Display |
| BMS Control | Built in intelligent BMS / Control Battery Performance |
| PHYSICAL & ENVIRONMENTAL | |
| Product Dimensions (L×W×H) | 900*570*420mm |
| Net Weight | 129KGS |
| Protection Grade | IP21 |
| Warranty | 5 Years |
