All In One Solar LED Street Courtyard Light Street Light Inbuilt Battery

Solar panel

18V 130W

Mounting height

10 - 11m

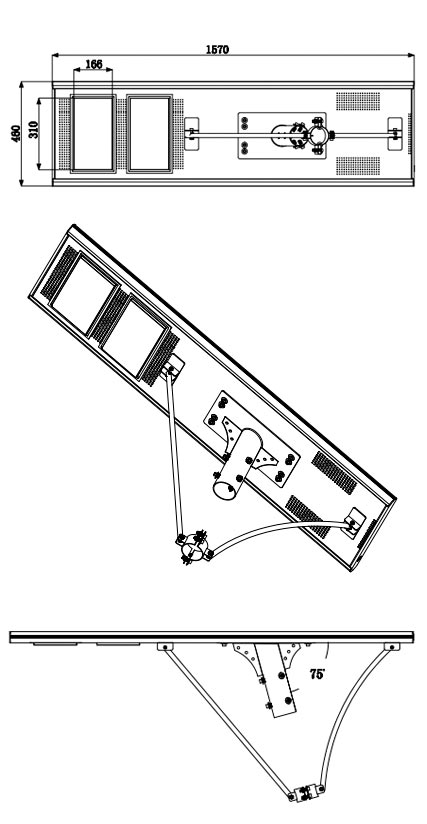

Product Size

1570*460*45mm

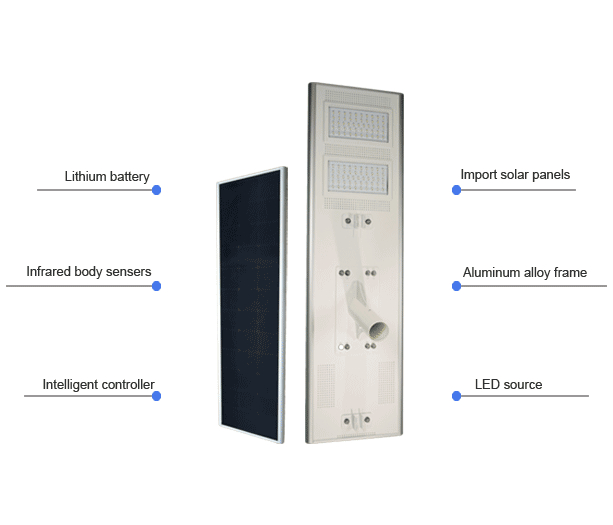

Product Features

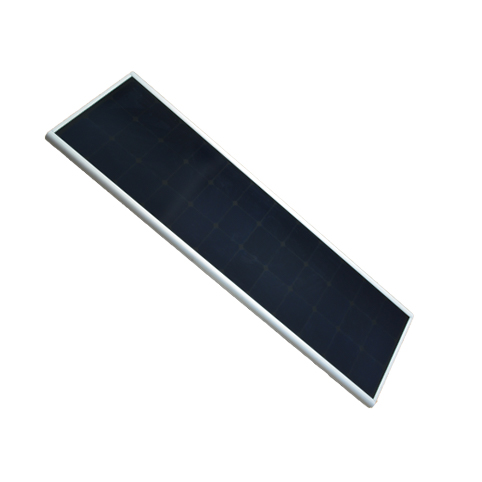

High-Efficiency: Mono crystalline silicon solar panel.

High brightness LED chip: Luminous efficiency 180LM/W, 50% higher than traditional conventional led chips..

Solar led street light all in one with inbuilt high-Efficiency lithium battery: Charging and discharging time is more than 1500 cycles.

High temperature controlling function: When the controller detects that the battery temperature is too high, will stops charging the battery to avoid high temperature damage to batteries as well avoid danger caused by excessive battery temperature..

All in one integrated structure.

All in one solar street courtyard light with PIR motion sensor: 12 meters sensing range.

Output control function: When the controller detects the battery pack are not much power left, the controller controls the power output, to extension of the lamp lighting time.

Product Parameters

Solar Panel	Max Power		18V/ 130W(Germany Solarworld High effeciency Mono Silicon)
	Lifespan		25 years
Battery	Type		Lithum Battery 12V / 65AH
	Lifespan		5 years
LED Light Source	Power		12V / 110W
	LED Chip		US Bridgelux 45mil， 1W/PC (120pcs)
	Luminance effect		13000-14000LM
	CCT (k)		6000-6500K
	Mounting height	10-11m
Certificate	ROHS,CE,IP65
Package method	product size		157046045mm
	N.W		22KG
	Carton size		1650530120mm
	G.W		24KG
	Accessary carton size		405x235x380mm （G.W：5.5kg）

Factory Display

HENAN RUICHEN TRAFFIC EQUIPMENT CO., LTD was founded in 2008, which is a all in one solar street courtyard light manufacturers focusing on R&D, manufacturing and selling of road traffic safety facilities and traffic equipment. At present, we have 6 product patents, 12 years manufacturing experience, 8 R&D personnel, 3 overseas offices and exported to more than 60 countries. For municipalities, highways, roadways, bridge and rural development projects, RUICHEN Traffic solar led street light all in one systems are reliable and effective.

Solar panel production

High conversion rate solar panel 18V/60W, Working in rainy days: ＞7 days.
