Unlocking "Cat's Eyes" for a Safer Future of Traffic

In low-light, heavy rain, or dense fog, a seemingly minor detail can become a life-saving guide. In modern road systems, there's a vital, yet often overlooked, invention: **Raised Pavement Markers**, commonly known as "Cat's Eyes." With their distinct glow, they offer unparalleled guidance to drivers in low-visibility conditions. This article provides a professional, in-depth analysis of road studs on a global scale, exploring their evolution from simple reflectors to an indispensable component of modern traffic safety.

1. The Birth of Road Studs: From Simple Reflection to a Cornerstone of Safety

The story of road studs began in 1934 with British inventor **Percy Shaw**. While driving in a thick fog, he was inspired by the glint of a cat's eye reflected in his headlights. This moment led him to realize that this simple principle could be applied to roads to provide clear guidance when visibility was poor. He patented the first reflective road stud in 1935. The original "Cat's Eye" featured a clever design with a rubber base and two glass reflectors, which also included a self-cleaning mechanism. When a vehicle drove over it, the compressed rubber pad would wipe the reflectors clean. This innovation quickly gained recognition, especially on the UK's nascent motorway network, as it solved a critical problem: painted lines on roads are often invisible in the rain. Data has shown that in wet conditions, road studs can increase a driver's effective visibility distance by several times, significantly reducing lane-departure accidents.

2. The Global Language of Color: A System of Unity and Diversity

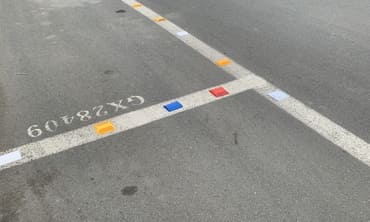

As road studs became popular worldwide, different countries developed unique color-coding systems based on their specific traffic laws and road conditions. Understanding these color languages is crucial for international drivers. Despite the variations, some core principles are universal:

• White: The most common color globally, used to mark lane divisions for traffic moving in the same direction.

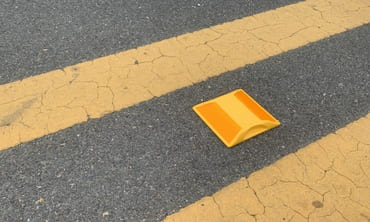

• Yellow (or Amber): Used in most countries (e.g., UK, USA) to separate opposing traffic flows or to mark central medians on motorways.

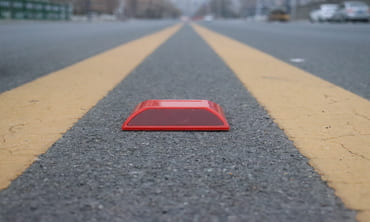

• Red: Typically marks the hard shoulder or road edge, warning drivers not to cross the line. For example, in the UK, red studs mark the edge of the motorway, while in Germany, they are often used for the right-hand road shoulder.
• Green: In some countries, green marks accessible areas like on-ramps, off-ramps, or emergency access points. In the UK, green studs are commonly found at motorway junctions.

However, the specific nuances are important. In the United States, for instance, road studs are known as **Raised Pavement Markers (RPMs)**. While white RPMs separate same-direction traffic and yellow ones separate opposing traffic, the US system also uniquely uses **blue** for the location of fire hydrants and **red** to indicate driving in the wrong direction on ramps or one-way roads. This stands in stark contrast to the UK's red-for-hard-shoulder system, highlighting the diversity in global road design philosophies.

3. Beyond Reflection: Technical Innovations and a Smart Future

Technological advancements have propelled road studs far beyond simple reflection. Modern studs incorporate more sophisticated materials and technologies to meet complex traffic demands:

• Solar-Powered Studs: A revolutionary innovation featuring a built-in solar panel, LED lights, and a rechargeable battery. They absorb solar energy during the day and automatically illuminate at night. Their active light-emission is not dependent on car headlights and can provide visibility up to ten times greater than traditional reflectors in extreme weather like fog or heavy snow.
• Rumble Strips: While not traditional studs, these raised markers use their design to produce both vibration and noise when driven over, providing a physical alert to a driver that they are leaving their lane, an effective tool against driver fatigue.
• Embedded vs. Surface-Mounted: Based on their installation, studs can be either embedded (flush with the road surface) or surface-mounted. Embedded studs are highly durable but more costly to install, while surface-mounted ones are easier to install but more prone to damage and detachment from vehicle wear.

These innovations transform studs from passive reflectors into active safety systems. They not only improve visibility but also provide multi-layered safety through physical feedback or active illumination, marking a significant leap in traffic engineering.

4. The Data-Driven Impact: Quantifying Contribution to Accident Reduction

The effectiveness of road studs is not just a theory; it’s backed by a growing body of research and statistics. A study by the UK's Department for Transport showed a significant drop in nighttime accidents on roads with installed studs, particularly in wet weather. In the US, the Federal Highway Administration (FHWA) reported that installing RPMs on curves and ramps can reduce lane-departure crashes by over **30%**. From a financial perspective, the investment is minuscule compared to the costs of traffic accidents. A cost-benefit analysis indicated that every $1 invested in improving pavement markings and studs could save approximately **$6 in accident-related costs**, including healthcare, property damage, and traffic delays. This makes road studs a highly efficient investment in public safety.

5. The Path Forward: Intelligent, Interconnected, and Sustainable

Looking ahead, road studs are evolving into key nodes in future **Intelligent Transportation Systems (ITS)**. Here are some cutting-edge trends already in development or use:

• Dynamic Traffic Management: Smart studs can integrate sensors to monitor road conditions, traffic flow, or weather in real-time. They can change color or flash frequency as needed. For example, in an accident or construction zone, studs could dynamically change from white to red, guiding traffic to an alternative path and improving both efficiency and safety.
• Vehicle-to-Infrastructure (V2I) Communication: Smart studs can act as data transmitters in a V2I network, communicating directly with autonomous vehicles. They can relay information about lane boundaries, upcoming obstacles, or road surface conditions, providing crucial redundancy for a self-driving system, especially in areas with poor GPS signals or in bad weather.
• Sustainable Materials and Design: With a growing focus on environmental responsibility, new studs are being manufactured using recycled materials and are designed to be more durable to reduce replacement frequency and environmental impact.

These advancements signal that road studs are transforming from simple markers into a proactive, responsive component of a smart transportation network, contributing to the ambitious goal of **Vision Zero** in traffic safety.

Conclusion

From Percy Shaw's accidental discovery to a globally adopted cornerstone of safety, and now to a key node in intelligent transportation, the evolution of the road stud is a testament to the power of innovation. They silently protect countless drivers every night, in every storm. By understanding their global color codes, advanced technology, and profound impact on traffic safety, we can appreciate that even the most understated design can provide the most effective layer of public safety. It’s not just an engineering victory, but a powerful example of human ingenuity relentlessly pursuing safety and efficiency on the road.
