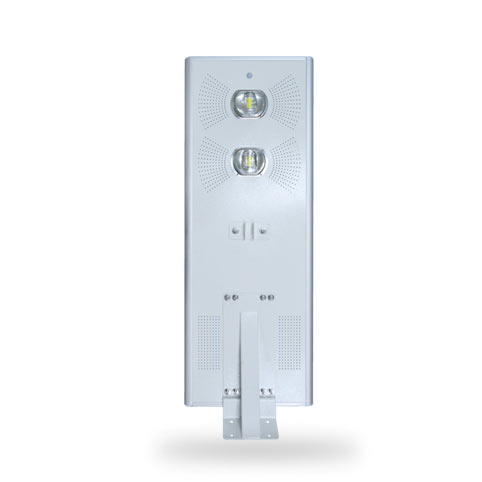

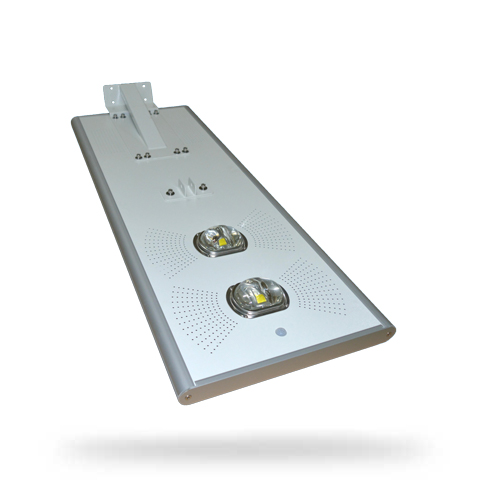

All In One Integrated Commercial Solar Powered Street Lights 90W

Solar panel

18V 100W

Mounting height

9 - 10m

Product Size

1210*460*45mm

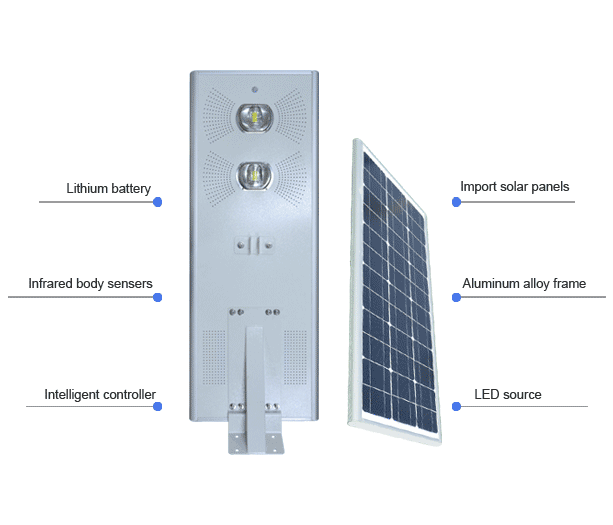

Product Features

High-Efficiency: Mono crystalline silicon solar panel.

High brightness LED chip: Luminous efficiency 180LM/W, 50% higher than traditional conventional led chips..

Commercial solar powered street lights with inbuilt high-Efficiency lithium battery: Charging and discharging time is more than 1500 cycles.

High temperature controlling function: When the controller detects that the battery temperature is too high, will stops charging the battery to avoid high temperature damage to batteries as well avoid danger caused by excessive battery temperature..

All in one integrated structure.

All in one integrated solar LED street light with PIR motion sensor: 12 meters sensing range.

Output control function: When the controller detects the battery pack are not much power left, the controller controls the power output, to extension of the lamp lighting time.

Product Parameters

Solar Panel	Max Power	18V/ 100W(Germany Solarworld High effeciency Mono Silicon)
	Lifespan	25 years
Battery	Type	Lithum Battery 12V / 50AH
	Lifespan	5 years
LED Light Source	Power	12V / 90W
	LED Chip	US Bridgelux 45mil
	Luminance effect	11000-12000LM
	CCT (k)	6000-6500K
	Lifespan	50000 hours
Mounting height	9 - 10m
Certificate	ROHS,CE,IP65
Package method	product size	121046045mm
	N.W	21KG
	Carton size	1345500200mm
	G.W	23KG

Factory Display

HENAN RUICHEN TRAFFIC EQUIPMENT CO., LTD was founded in 2008, which is a commercial solar powered street lights manufacturers focusing on R&D, manufacturing and selling of road traffic safety facilities and traffic equipment. At present, we have 6 product patents, 12 years manufacturing experience, 8 R&D personnel, 3 overseas offices and exported to more than 60 countries. For municipalities, highways, roadways, bridge and rural development projects, RUICHEN Traffic all in one integrated solar street light systems are reliable and effective.

Solar panel production

High conversion rate solar panel 18V/60W, Working in rainy days: ＞7 days.
